Fostex 6301ND Active Speakers - Crisp Multi-Channel Sound
The Fostex 6301ND is a compact active monitor designed for professional audio monitoring at home, in the studio, or live settings. With a powerful 4" full-range driver and a 20W Class-D amplifier under the hood, the 6301ND lets you enjoy clear and precise sound wherever you go.
What's In The Box?
- Fostex 6301ND - 4" Active Monitor Speaker 20W D-Class (Single)
- Standard IEC Power Cord
- Limited 1-Year Manufacturer Warranty
Specially-designed 4" Driver with Class-D Amp for a distorion-free sound
The Fostex 6301ND uses only the best components, so you can get the clearest and most accurate sound for serious audio monitoring work.
Lurking inside the 6301ND's compact enclosure is a 4" full-range driver paired with a 20W Class-D Amplifier. These two components deliver ultra-clear sound with incredible detail and tone, so you can hear audio with unmatched precision.

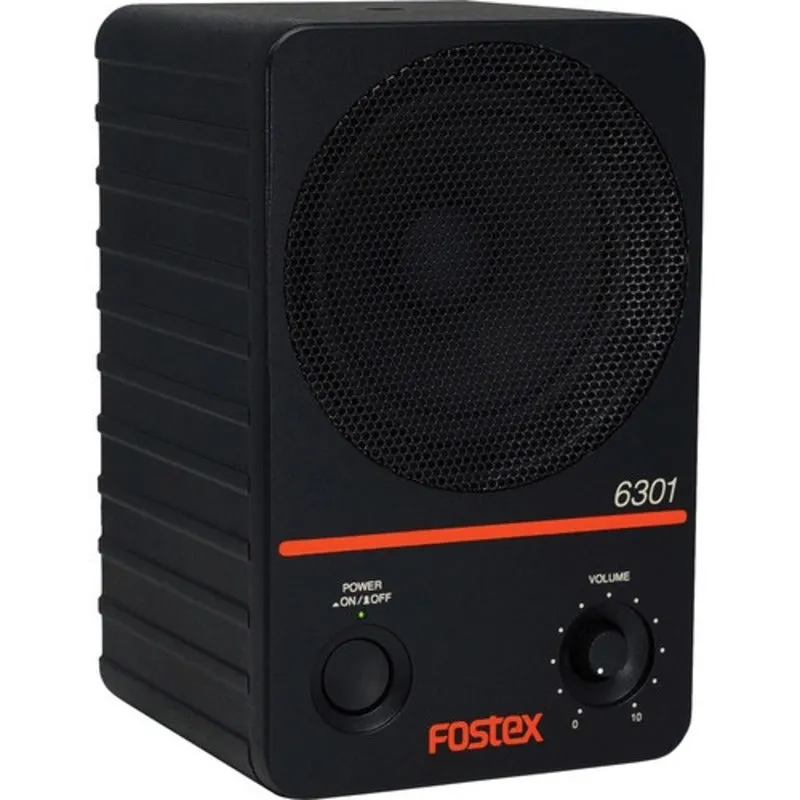

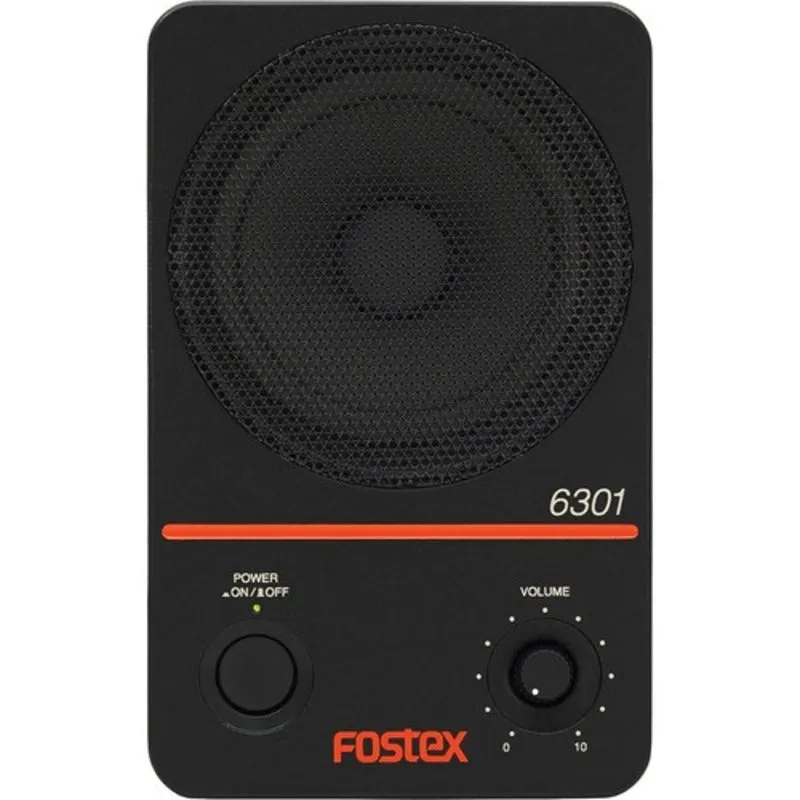

The Fostex 6301ND features Front-panel Controls and Channel Switch, so you can fine-tune your sound
At the front of the 6301ND, you'll find a simple power switch and volume knob, so you can tune your sound with precision.
The Power ON/OFF and Volume Knob is recessed to prevent unwanted interruptions. The Power Switch is tactile, while the front-facing volume knob is smooth and precise, so you can set up the 6301ND to your preferences.

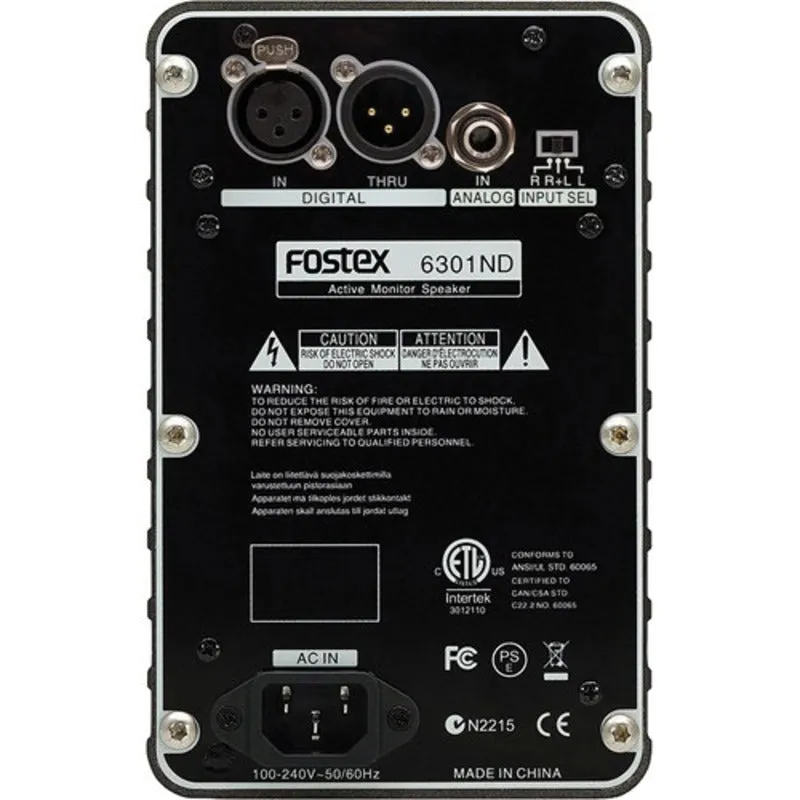

At the back, the 6301ND sports a digital AES/EBU XLR thru connector for easy connections to multiple 6301ND active speakers. The input switch at the back lets you choose between three options: Left, Right, or Left/Right, so you can create the perfect audio setup every time.
Built-In Protection Circuitry with Auto Standby Mode for reliable and efficient audio monitoring
The Fostex 6301ND is designed for reliable and consistent performance. Inside you'll find a built-in protection circuit, so you never have to worry about overloads or short circuits.
When not used for 25 minutes, the 6301ND automatically switches to Standby Mode, reducing power consumption to an impressive 0.5W, so you never draw more power than required.
Compact Aluminum Enclosure for unbeatable portability
The 6301ND is designed to be compact and lightweight, so you can easily take it anywhere you go.

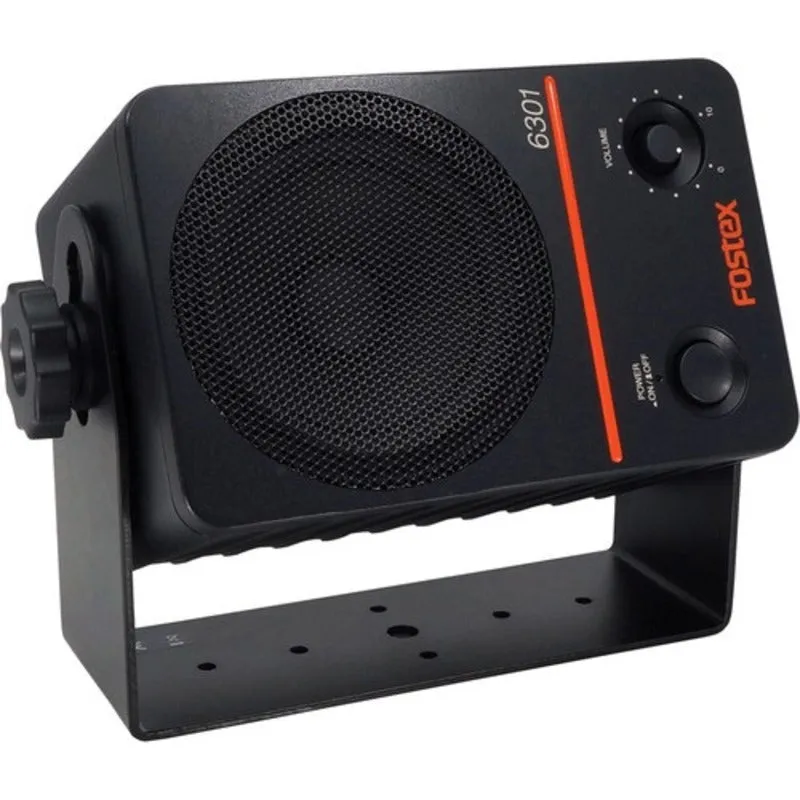

The entire shell is built from robust die-cast aluminum for a solid yet lightweight feel. You can add an optional bracket to the 6301ND, so you get perfect audio coverage in any space.
Fostex 6401ND Specs
SPEAKER SECTION
Enclosure Type
Closed type (Material: Aluminum die-cast)
Unit
4" Full-range
Frequency Response
70Hz to 15kHz
Sound Pressure Level
85dB/W(1m)
Maximum Sound Pressure Level
98 dB
AMPLIFIER SECTION
Connector
XLR-3-31 (IEC 60958 AES/EBU)
Input Impedance
110 ohm or more
Rated output
20W
Distortion (T.H.D.)
0.05% (1kHz / 1W output)
Residual Noise
-65dBV or less
Input Sensitivity
XLR (Digital): -12dBFS
Auto Stand-by
active after approx. 25 min. of continuous input lower than the threshold level
GENERAL
External Dimensions
120(W)×189(H)×120(D)mm *including maximum projection
Weight
Approx. 2.2 kg
Power Requirement
AC 100 V to 240 V, 50/60 Hz
Power Consumption
10 W (less than 0.5W in stand-by mode)
Fostex 6301ND Manual
